Name: Hot Water Commercial Air Source Heat Pump Copeland For Factory Or Building
Brand: Yushen
Price: 1 USD

Brand Name : Yushen

Model Number : SDWA-014Y

Certification : CCC, ISO, CQC

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T

Supply Ability : 10 sets/day

Delivery Time : 1-2weeks

Packaging Details : Reinforced Carton box with wooden tray

Key word : hot water Heat Pump

Compressor capacity : 5HP

COP : 4.12

Function : heating

Compressor brand : Copeland

Refrigerant : R410A/R22/R407C/R134A/ R410A

Contact Now

5HP Commercial Hot water Unit Air Source Heat Pump for factory or building

Quick details

Commercial hot water unit could work as outdoor unit for air conditioning, radiator, floor oils of house, office building, apartment, shopping mall.
It is 40% energy-saving than electrical AC unit in heating, more energy-saving than coal boiler and other furnaces
Water circulation in the system, safe and comfortable than other air coditioner
The hot water could be used for factory processing line, factory domitory bathroom or heating
It could work even outside temperature is up to +45C or low to -25C

Model Parameter

Model		SDWA-014Ycode name.pdf
Compressor capacity		5HP
Function		Heat
Electricity		220V 1N-50Hz
Working conditions	℃	-25~+43
Nominal heating capacity	KW	14
COP	KW/KW	4.12
Nominal input power	KW	3.9
Max. running currency	A	32
Highest water temperature	℃	60
Compressor quantity	Set	1
Refrigerant/charging quantity kg	/	R22/3.7
Air blow type	/	Top
Water pipe diameter	/	1''
Rating flow	m³/h	2.8
Water side pressure loss	kPa	≤45
Noise level	dB(A)	62
Overall dimensions(L×W×H)	mm	730×700×1020
Weight	kg	180

Nominal heating conditions:ambient dry bulb temperature 7℃, web bulb temperature 6℃, water inlet temperature 9℃,water outlet temperature 55℃

Yushen Products Advantages

Larger application range ,even environmental temperature is low to -25℃ or high to +45 ℃(from -13℉ to 113 ℉)
100% finished products testing
Reliable performance,yushen air-source heat pump has longer heating time and shorter defrosting time
Quality Components such as Copeland compressor, Danfoss valves
35% more powerful than other productsy
High COP, no capacity decay even under low environmental temperature
fast delivery time , standard models productivity is 10 sets per day

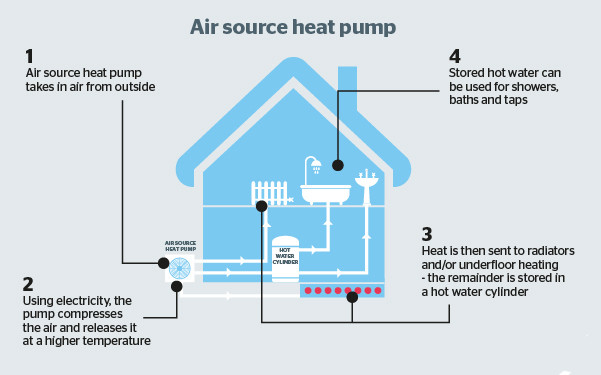

How air source heat pump work

catalogs-email.pdf
